Teams Direct Routing and a CCE

Just a quick one here. I was busy setting up some Voice Routes and Online Voice Routing Policies for Direct Routing but it wasn’t behaving as I expected. I had purposely locked down my account I was using to only allow UK calls. But when making a call to Microsoft US, it worked. Odd!

I double checked the routing I had in place and it was correct. Strange…

I then made sure I didn’t have a Calling Plan assigned (as that will be used as a last resort)… I didn’t.

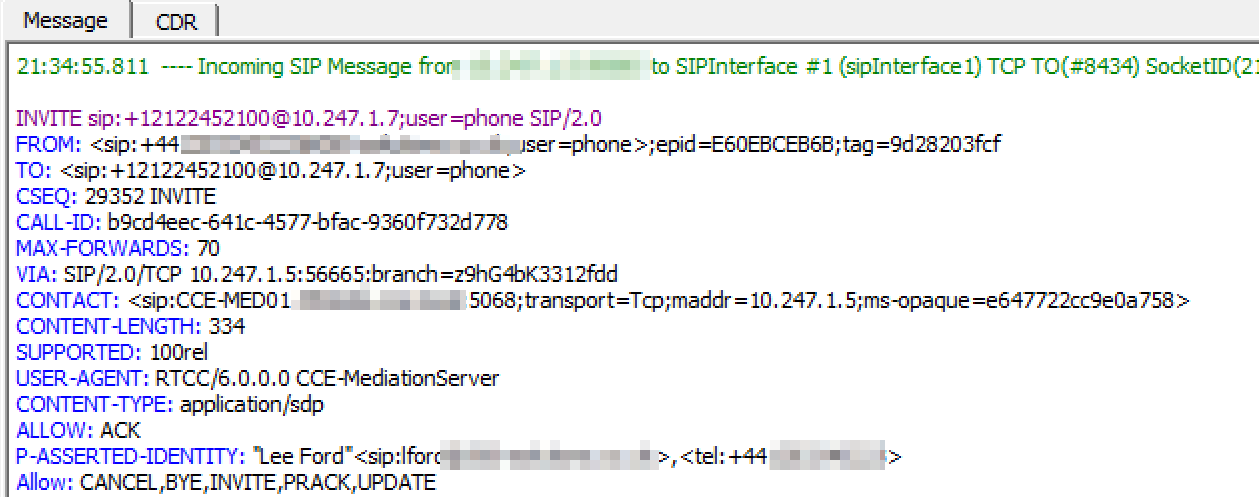

When I checked the SBC I was using for Direct Routing I could see the call. But, when I looked closer I could see the call was coming from the CCE, not the Teams gateway:

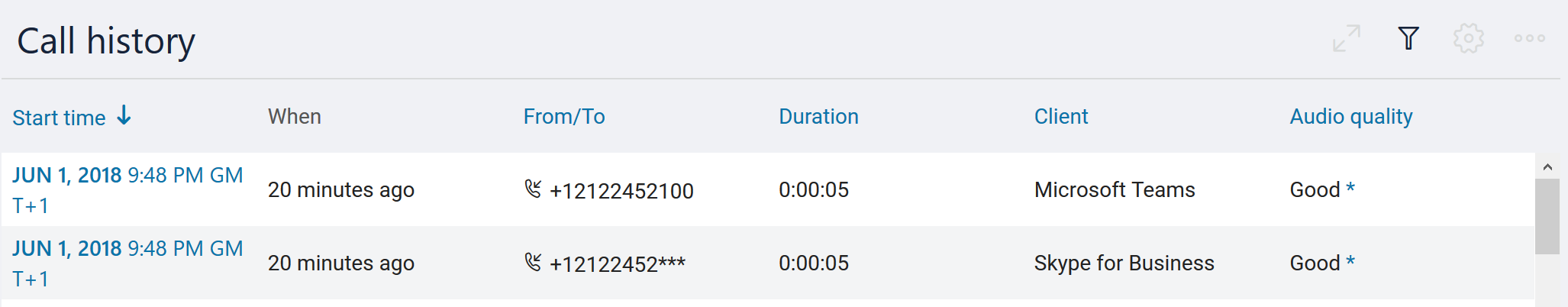

Checking the Call Analytics I can see two separate calls for the same call (one SfB side, one Teams side):



To prove 100% this was what it was, I used the InternationalCallsDisallowed Voice Routing Policy:

(Voice Routing Policies are for SfBO (Calling Plans, CCE, Hybrid) and Online Voice Routing Policies are for Teams Direct Routing – clear as mud, I know).

After setting this the calls failed as expected. Not sure if this is intended, but it looks like not just Calling Plans but Hybrid/CCE can be used as a last resort!

2 thoughts on “Teams Direct Routing and a CCE

  • 23rd August 2018 at 10:54 PM
    Permalink

    How can you move a user back to Cloud Connector? I have an issue after move my user to teams I’m not able to do outbound calls

    Reply
    • 24th August 2018 at 6:29 AM
      Permalink

      For outbound calls, you need to set the users OnlineVoiceRoutingPolicy to $null. Then, outbound calls will use either Calling Plans or CCE (if the user has it assigned).

      Grant-CsOnlineVoiceRoutingPolicy -Identity “[email protected]” -PolicyName $null

      For inbound calls, you need to ensure the SBC is routing the call via CCE and not Direct Routing.

      Reply
